| 控制系統 | PLC控制 |
|---|---|
| 長徑比 | 1：40 |
| 螺桿轉速 | 0-300 |
| 加熱方式 | 電加熱 |
| 冷卻裝置 | 風冷/水冷（可選配） |
| 風機 | 1/4HP |
| 切粒機 | 切粒機 |
| 電源 | 3∮ac380v |
| 質保 | 一年 |
| 物流 | 陸運 |
| 別名 | 造粒機 |
| 產地 | 東莞 |
| 電動機功率 | 4kw |
| 鍋體容積 | 1 |
| 加熱功率 | 8控溫 |
| 類別 | 造粒機 |
| 螺桿長度 | 1000mm |
| 螺桿直徑 | 21.7mm |
| 切刀轉速 | 35KG/H |
| 生產能力 | 1-10kg |
| 適用原料 | PVC |
| 售后服務 | 質保一年 |
| 外形尺寸 | 5000x600x1580mm |
| 銷售方式 | 直銷 |
| 用途 | 造粒 |
| 重量 | 500kw |
| 執行質量標準 | 國標 |
| 貿易屬性 | ** |
| 發貨期限 | 15天 |
| 品牌 | 錫華 |
| 型號 | XH-433-25 |
| 固定刀數量 | 2 |
| 螺桿數 | 雙螺桿 |
| 旋轉刀數 | 3把 |
| 回旋直徑 | 40mm |
| 進料口直徑 | 40mm |
| 濾篩板孔徑 | 0 |
| 機器中心高 | 1000mm |
| 打樣周期 | 以客戶實驗為準 |
| 質量認證 | ISO9001 |
XH-433雙螺桿實驗型造粒線
XH-433 Twin screw experimental granulation line
簡介：本機適合工程塑膠、改性塑膠、廢舊塑膠、色母粒的混煉加工實驗。具有均質、塑化著色、填充改性等功能。
Introduction: This machine is suitable for mixing and processing experiments of engineering plastics, modified plastics, waste plastics and masterbatches. It has homogeneous, plastic coloring, filling modification functions.
工作原理：本機通過加熱、混合，剪切、塑化、壓實排氣作用下，物料塑化成均勻的熔體，并在雙螺桿的擠壓下，通過機頭擠出圓形的條狀料，經冷卻水槽水冷后或者風冷后，再經切粒機切粒，得到塑膠粒料。
Working principle: Under the action of heating, mixing, shearing, plasticizing and compacting the exhaust, the material is plastified into a uniform melt, and extruded under the twin-screw and extruded through the nose into round strips. The long strips after being cooled by water in the cooling water tank or after being air-cooled, then pelletized by a pelletizer to obtain plastic pellets.
技術參數(Technical Parameters)：
| 型號 Model No. | XH-433-25 | XH-433-40 |
| 控制系統 Control system | PLC控制 PLC control | PLC控制 PLC control |
| 產量 Capacity | 約1-10kg/h根據工藝配方 1-10kg/h(decide by formula ) | 約60/h根據工藝配方 60/h(decide by formula ) |
| 螺桿直徑 Screw diameter | 21.7mm或指定 21.7mm or customized | 40mm或指定 40mm or customized |
| 長徑比 L/D | 1：40 | 1：48 |
| 螺桿轉速rpm Screw speed | 0-300 | 50-500 |
| 冷卻裝置 Cooling device | 風冷/水冷（可選配） Air/water cooling (optional) | 風冷/水冷（可選配） Air/water cooling (optional) |
| 風機 Fan | 1/4HP | 3HP |
| 切粒機(原有切粒裝置) Cutting device | 切粒機Granulator | 切粒機Granulator |
| 電源 Power Supply | 3∮，AC380 | 3∮，AC380 |

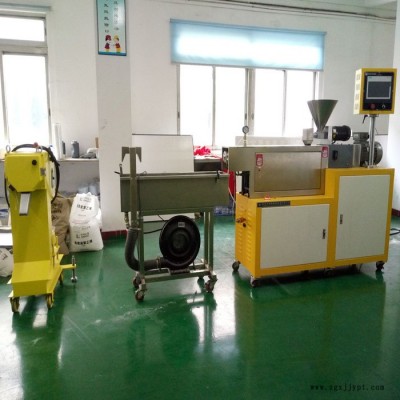

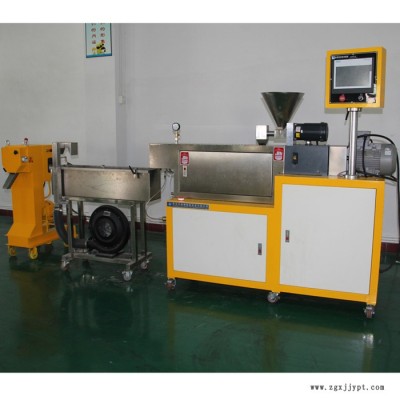

生產車間實拍大圖：
